Product Details
＋
Overview

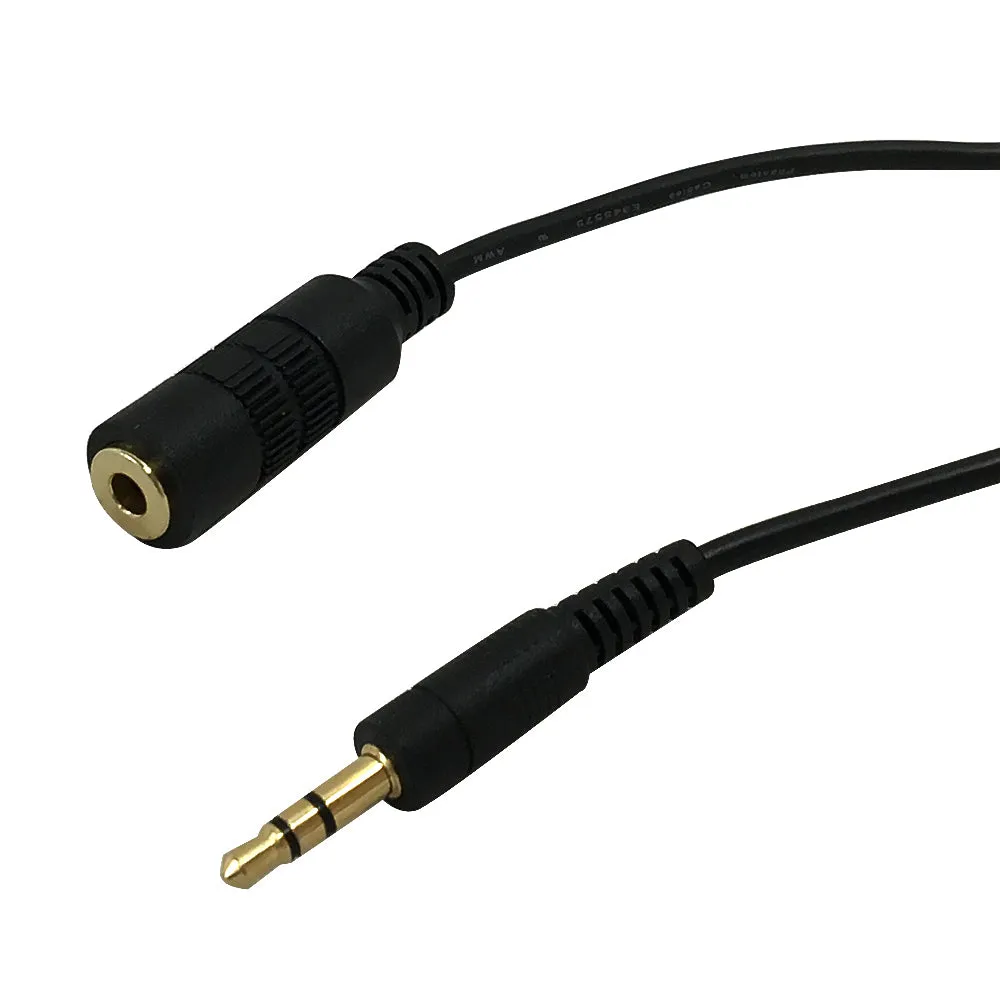

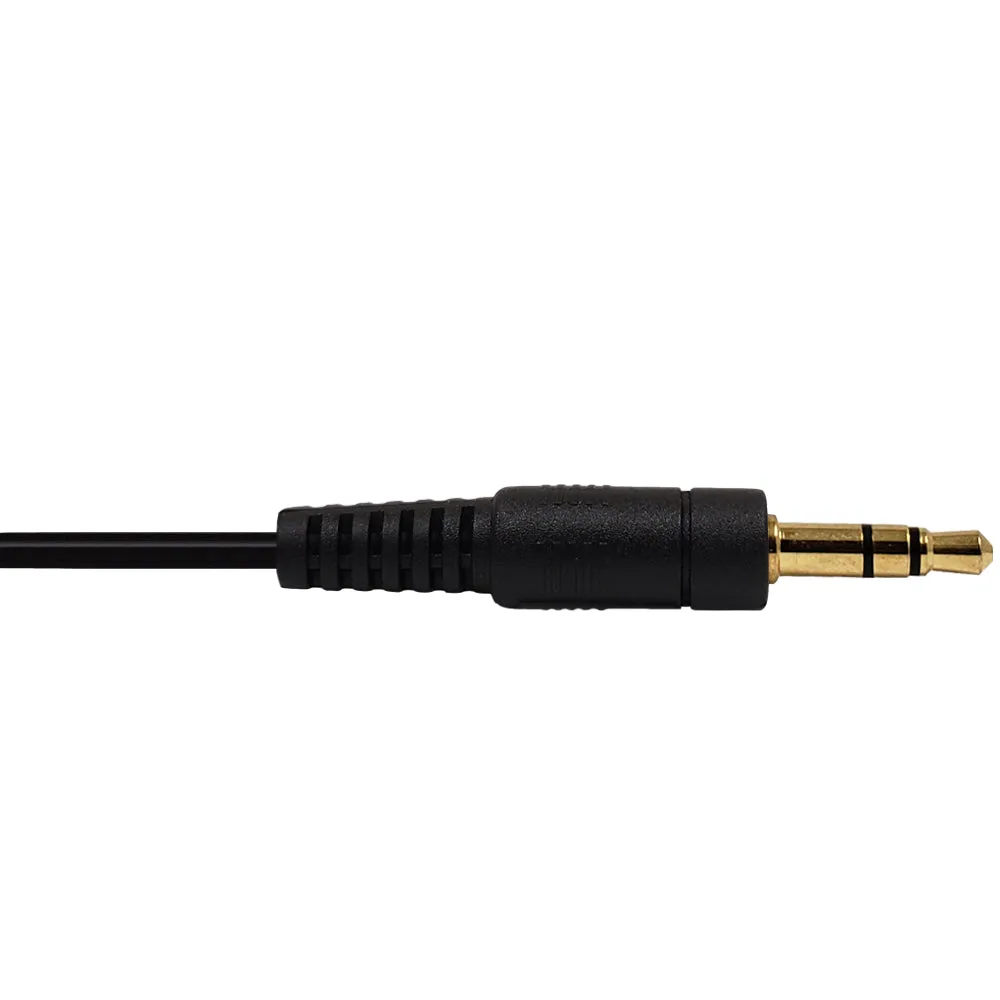

This ultra slim stereo audio cable has a 3.5mm male on one end and a 3.5mm female on the other. It is typically used to extend a 3.5mm stereo cable. The ultra slim 3.5mm male connector and cable is designed to be lightweight, durable and fit perfectly in mobile devices. They also work with most protective cases.
|
| Slim Connector DesignThe connector moldings have a slim profile to fit properly in today's compact electronic devices. Flexible Cable ShieldingThis audio cable features 85% tin copper spiral braid cable shielding for increased flexibility. Ultra-Thin Cable with a Riser Fire Rated JacketThe ultra-thin cable comes in a FT4 riser fire rated jacket for in-wall use. |
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 2.8mm |
| Wire Gauge | 28AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 85% Bare Copper Spiral |
| Strain Relief | Molded PVC |
| Storage Temperature | -10 „ƒ to 70 „ƒ |
| Operating Temperature | 0 „ƒ to 45 „ƒ |
Connectors | |
| Connector A | 3.5mm Stereo Male |
| Connector B | 3.5mm Stereo Female |
| Connector A Diameter | 7.6mm |
| Connector B Diameter | 11mm |
Approvals | |
| c(UL)us | Yes - Cable |
Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
Package Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|
| 0.02 lbs | 0.06 lbs | 0.08 lbs | 0.10 lbs | 0.20 lbs | 0.25 lbs | 0.30 lbs | 0.45 lbs |
