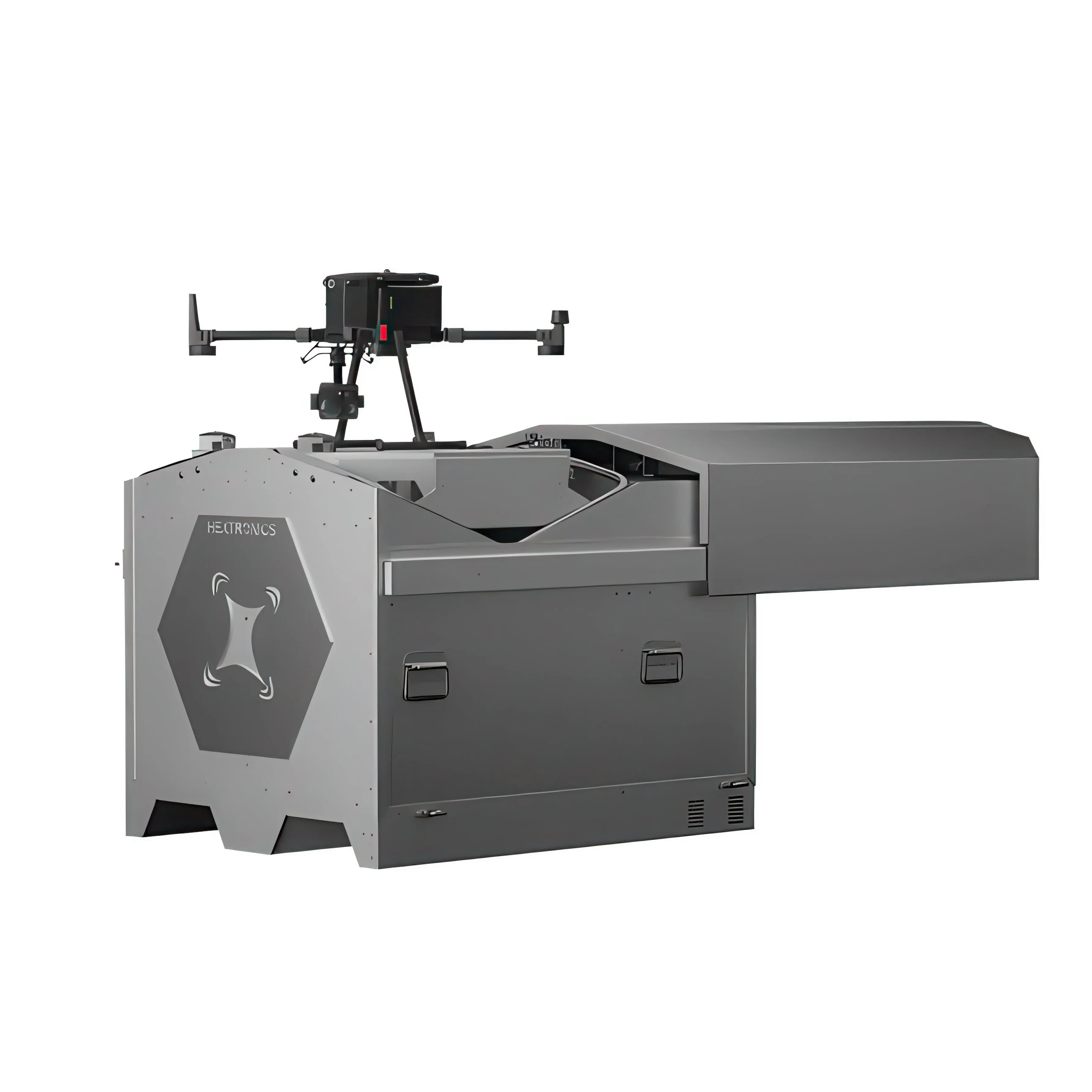

The Hextronics Atlas is a cutting-edge, stationary drone docking station purpose-built to accommodate the DJI Matrice 350 RTK and DJI Matrice 300 RTK. Engineered for high-performance UAS, this robust solution offers unparalleled reliability, precision, and autonomy. Designed to meet the rigorous demands of industries like public safety, construction, agriculture, and infrastructure inspection, the Atlas ensures uninterrupted drone missions through advanced battery swapping and seamless integration with modern drones and payloads.

Key Features

1. Battery Storage & Swapping

   1. Stores up to 8 swappable batteries.


   2. Smart charging: 10–100% in 45 minutes.


   3. Reliable operations for drones with long-range capabilities.


2. HVAC System

   1. Regulated internal temperature: 10°C–35°C (50°F–95°F).


   2. Operates efficiently in extreme climates.


3. Advanced Software Integration

   1. Compatible with FlytNow Auto for mission planning, precision landing, video recording, and cloud storage.


   2. Supports modular add-ons like weather stations and cellular networking.


4. Structural & Modular Design

   1. Built to last with a 5-year structural warranty.


   2. Modular configuration options allow customization for specific operational needs.


5. Extended Transmission Range

   1. Maximum: 20 km (12.4 mi).


   2. Operational area: 15 sq km (9.3 sq mi).


Why Hextronics Atlas?

1. Uninterrupted Autonomy: With its innovative robotic battery swapping mechanism, the Atlas enables continuous operations with minimal downtime. Swap time averages just 90 seconds, ensuring drones are always ready for the next mission.

2. Industrial Durability: Designed to withstand harsh environmental conditions, the Atlas features an IP55-rated insulated aluminum housing and a compressor-based HVAC system. It operates in temperatures ranging from -20°C to 50°C (-5°F to 122°F) and is resistant to rain, dust, and extreme heat or cold.

3. Comprehensive Compatibility: The Atlas is optimized for DJI Matrice 300 RTK and Matrice 350 RTK, supporting various payloads like the H20, P1, and L2, as well as third-party sensors.

4. Precision Landing: Equipped with advanced technology, the Atlas achieves /- 15 cm precision landing accuracy and a 99.99% reliability rate, ensuring safe and efficient drone returns.

Industry Applications

The Atlas empowers a variety of industries with enhanced drone operations:

1. Public Safety & Emergency Response: Fast response times in critical scenarios.

2. Construction & Infrastructure Inspection: Automated monitoring of assets over time.

3. Agriculture: Livestock tracking, crop health monitoring, and resource management.

4. Energy & Utilities: Reliable inspections in remote or hazardous environments.

5. Environmental Conservation: Supporting sustainability through wildlife tracking and ecological surveys.Specs

Specs

Hextronics Atlas Technical Specifications

Properties

Externals Box Properties

Hardware

IO Panel

Software

Modular Add-Ons

Codes And Certifications

Warranties

Set Up And Maintenance

Performance

FAQ

What Is The Difference Between The Atlas And Universal?

The Atlas supports larger and powerful drones such as the DJI M350 and has a broader scope of capability, ideal for industrial use in construction, inspection, fast response, security, etc. The Universal supports a wider variety of smaller drones such as the DJI Mavic 3, Anzu Raptor, and Parrot Anafi. The Universal is a highly portable option for DIAB solutions, ideal for personal or use on-the-go. Both are Drone-In-A-Box stations that swap and/or charge the drone batteries.

Can Pilots/Operators Manually Control The Flight And Gimbal Of The Aircraft?

Yes! All of our software providers enable this.

Is It Possible To Stream Video From The Drones?

Yes, livestream of the drone video is possible through our partnered flight software providers. See our partners list below.

Compatibility

DJI Matrice 350
DJI Matrice 300
