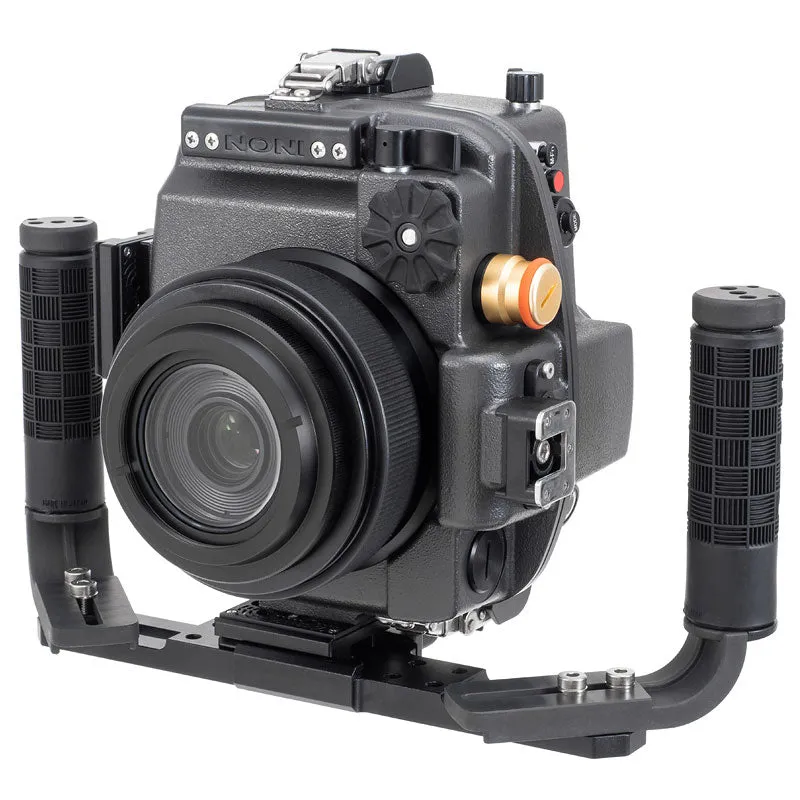

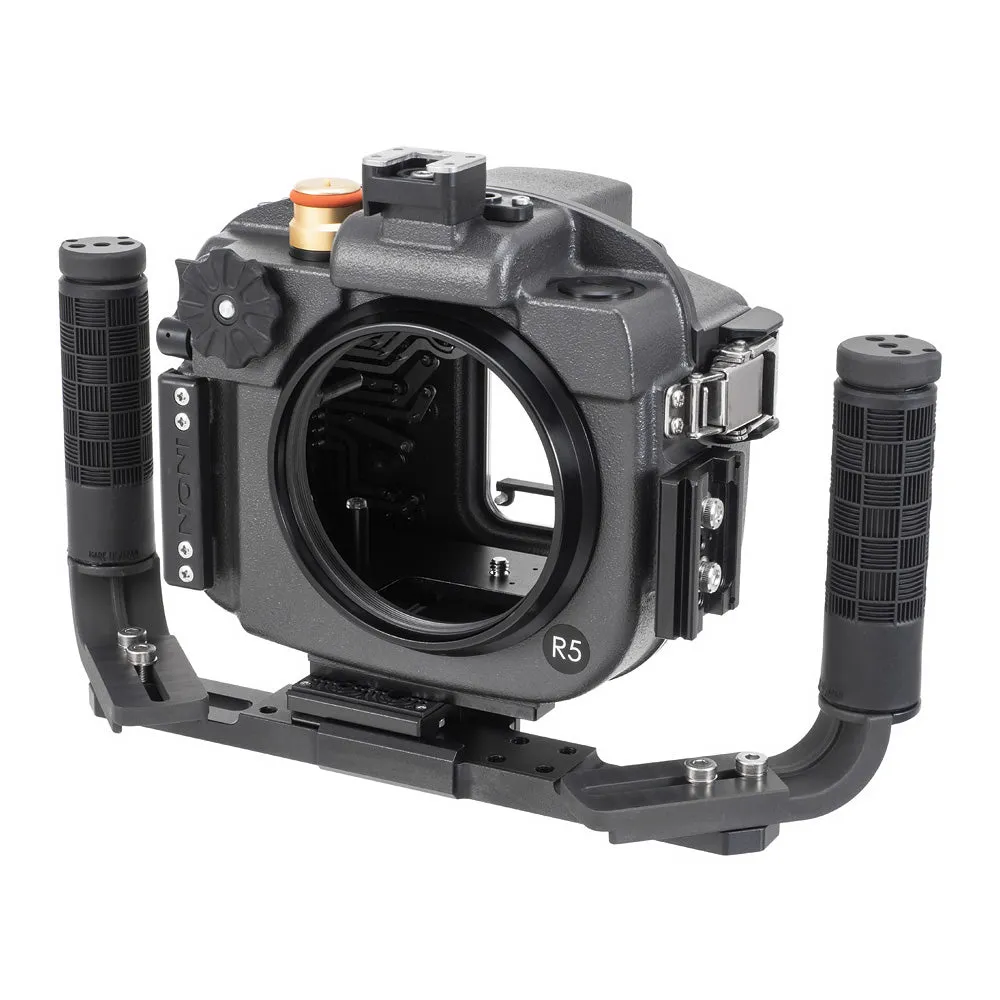

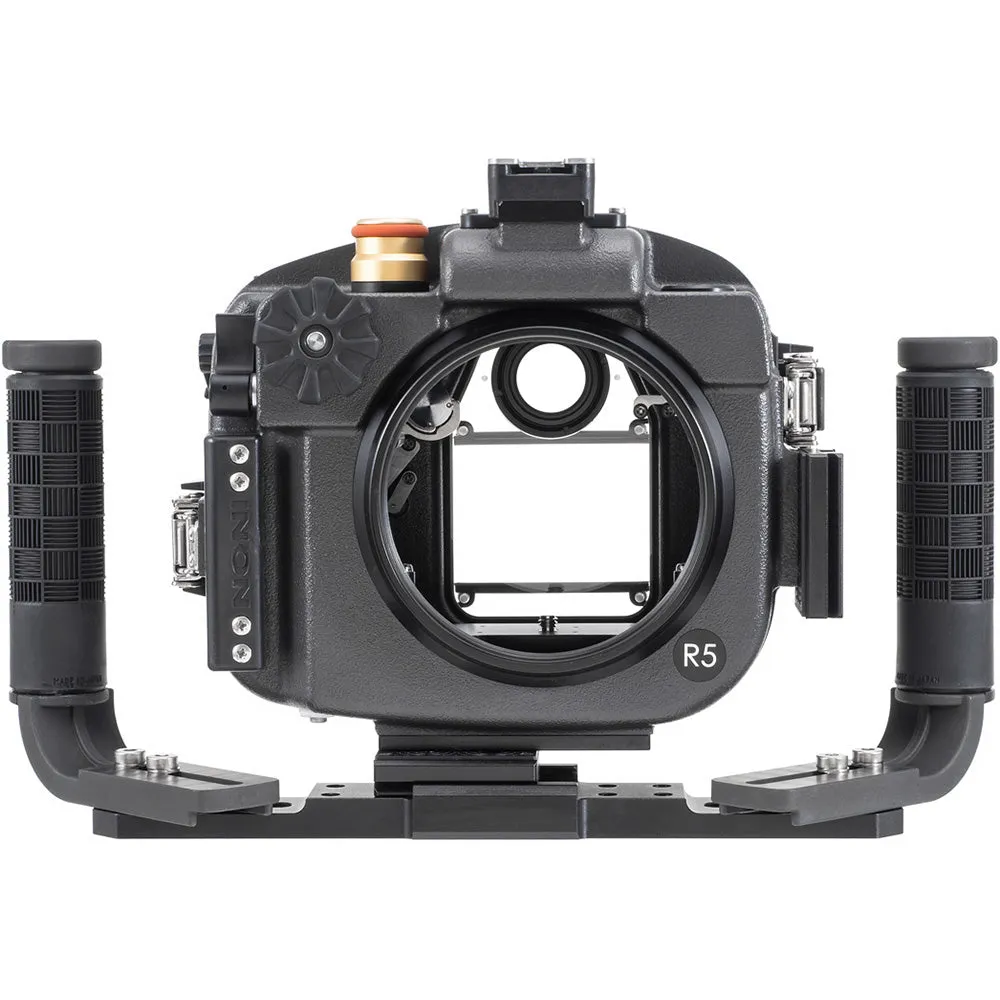

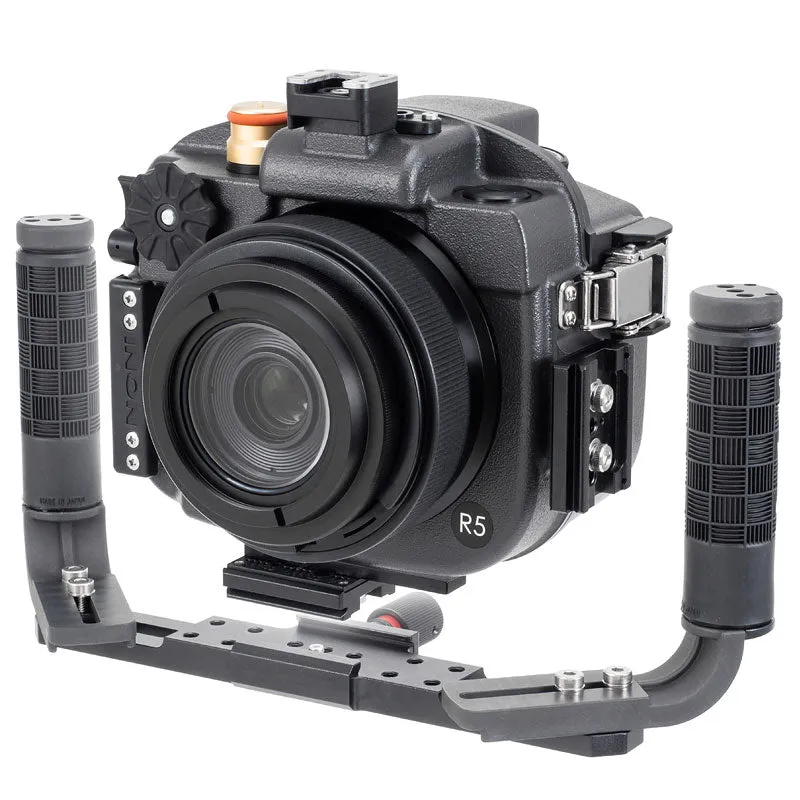

• A housing for Canon EOS R5
• INON strobe compatible ultra-accurate multi-functional built-in "TTL Converter" as standard feature
• Control flash amount directly from camera
• 12 shots/sec. continuous shooting supported
• Equipped with “Quick Shoe System” for quick switch between horizontal and vertical camera composition
• Standard “Vacuum Leak Sensor (PAT. P)" checks housing sealing in only 5 minutes
• MRS port further evolves to support fine manual focusing
• Optional two viewfinders provide bright and clear finder image
• Lightweight and compact ultra-precision cast aluminum body

Ultra-accurate multi-functional built-in "TTL Converter"

Strobe manual power is directly adjustable from camera

INON strobe manual power is directly adjustable from camera ranging between 1/64 and FULL at 1/3EV. increments. Useful when strobe is positioned away like on long strobe arm or when shooting with backlit technique.

12 shots/sec. continuous strobe firing

The TTL Converter fully supports [High speed continuous][High speed continuous ]. With ultra-accurate TTL shooting is now available for continuous shooting based on electricity stored in a capacitor6. INON TTL Converter strives efficiency in battery consumption not to miss precious moment and successfully provides more than 100,000 flash triggering only by two CR2032 coin batteries.

* 4 shots/sec.in [Continuous shooting], 12 shots/sec. in [Continuous shooting ].Tested by INON with fully charged camera battery.
** Pause the strobe for a few minutes when taking more than 100 consecutive shots to avoid possible damage.
When strobe output gets extremely low such as using S-TTL, open aperture or high ISO sensitivity, the strobe can shoot continuously until the battery gets flat but the strobe may be damaged by the load.

Built-in Quick Shoe System supports quick camera composition change

The base plate is INON's unique Arca Swiss style Quick Shoe Main Base.
The Quick Shoe W50 Plate on the bottom and side of the housing allows you to quickly change to vertical composition.
In addition to vertical composition without changing lighting position, it also allows you to shoot vertical composition from low angle which is not possible with conventional system.

Built-in "Vacuum leak sensor" confirms housing sealing in 5 minutes

The "Vacuum Leak Sensor" ensures housing sealing by monitoring air pressure inside of the housing during leak check and warns accidental flooding with LED blinks and buzzer during diving. The onboard pressure sensor changes sensitivity for leak check and diving by variable control program (PAT. P).

The supersensitive pressure sensor detects even fine leakage. Not as like conventional leak sensors, it drastically shortens test time (from 30 seconds to 5 minutes). The sensitivity of the dive mode eliminates false alarm even when ambient temperature changes.

New S-MRS Port

Newly developed S-MRS (Magnetic Rotary System) controls focusing and zooming by magnetic attraction. The new S-MRS provides smoother operation with less play or rattle comparing to the previous model. By combining the EOS R5 with an RF lens, the MF Peaking function can also be used during full-time manual focusing. Together with the focus guide function, this enables ultra-precise focusing.

Maximum three MRS Control Rings can be installed to control the Control Ring, Focus Ring and SA Control Ring.

Optional two bright viewfinders

Optional viewfinders provide same magnification as camera’s viewfinder (1.0x) and extends its eye-point. Two options are available: “Straight Viewfinder Unit ll” or angled “45 degree viewfinder Unit III” * to choose depending on shooting conditions.

* Viewfinders with serial number D294600 or later are compatible with the "X-2 R5" housing. Earlier serial numbers are not compatible.

Lightweight and compact ultra-precision cast aluminum body

The X-2 R5 is made from corrosion resistance aluminum alloy by ultraprecise cast manufacturing technique to fuse design, weight and durability in higher dimension.
The cast manufacturing technique enables thin body plate with complicated curved design which is not possible with machining. Lightweight and durable aluminum alloy body has acquired reliability, durability and controllability even in severe underwater.

Specifications

Exterior
